Pillow Tanks 1500- 10 000 liters

PVC Products’ pillow tanks for potable water are made of PVC-coated polyester fabric. The PVC–coating is non-toxic and approved by official bodies for use in transport and storage of drinking water. Manufactured to withstand high UV-intensity.

Ta kontakt via skjemaet under for pris


Forespør et pristilbud for dette produktet:

  • Produktinfo
  • Documents

Pillow tanks 1500- 10 000 liters

PVC Products’ pillow tanks for potable water are made of PVC-coated polyester fabric. The PVC–coating is non-toxic and approved by official bodies for use in transport and storage of drinking water. The tanks are manufactured to withstand high UV-intensity.

Fill in the form with your email and any questions or comments (in the field "henvendelse") and we will get back to you soon.

PRODUCT DESCRIPTION

  • Capacity: 1500 / 5000 / 10000 litres
  • Inspection: 4″ threaded flange w/PVC lid

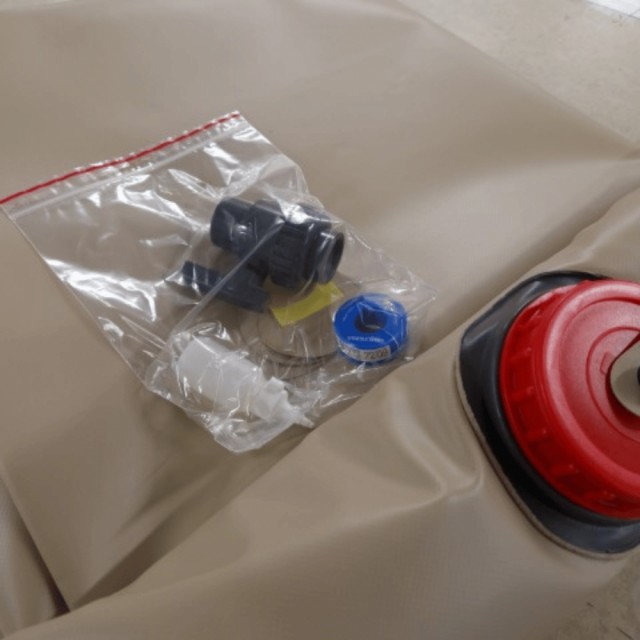

  • Filling/Discharge: 2″ PVC ball valve w/2 inch internal pipe thread fitted with aluminium Guillemin male adaptor
  • Material: PL-P-524 (Protan Quality 524)
  • Size: 2,0 x 2,4 / 2,0 x 6,0 / 3,0 x 7,0 m (flat folded out)
  • Weight: 12 / 25 / 52 kg
  • Installation/maintenance: Instruction for installation and repair set with instruction for maintenance, small repairs and cleaning procedures are packed with each tank

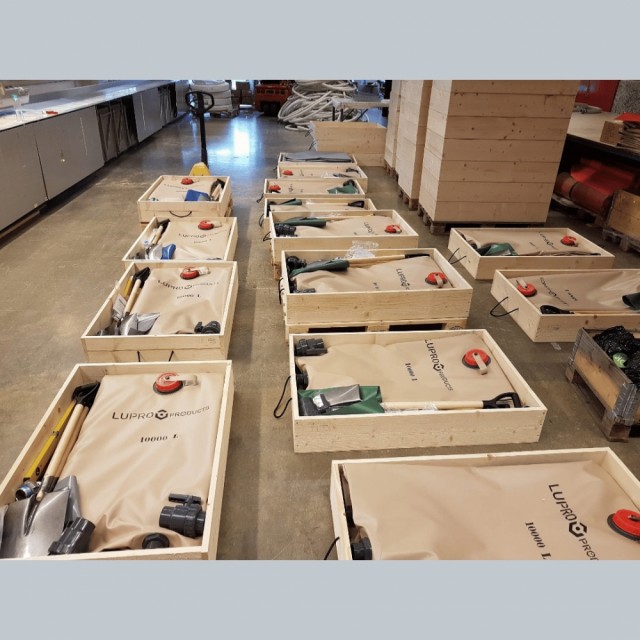

  • Packing: Pillow tank is folded and put in a wooden crate
  • Storage: To be stored in a dry area and shielded from rain and water
  • Options: Camlock or Storz can replace Guillemin couplings
  • Shipping: 4/2/1 pillow tanks in each wooden crate
  • Crate dimension: 120 x 80 x 20 (cm) approx. 0,16 cum
  • Weight: 60/65 kg

Pillow tank brochure: produktark-pillow-tank-general

Protan quality 524, Product data sheet: 524-Protan-water-quality

PVC Products emergency equipment brochure: pvcproducts-brosjyre-v2-mars2019
